12,000 lb 2-Post Car Lift – 220V 4HP Hydraulic Lift

12,000 lb 2-Post Car Lift – 220V 4HP Hydraulic Lift

Product Description

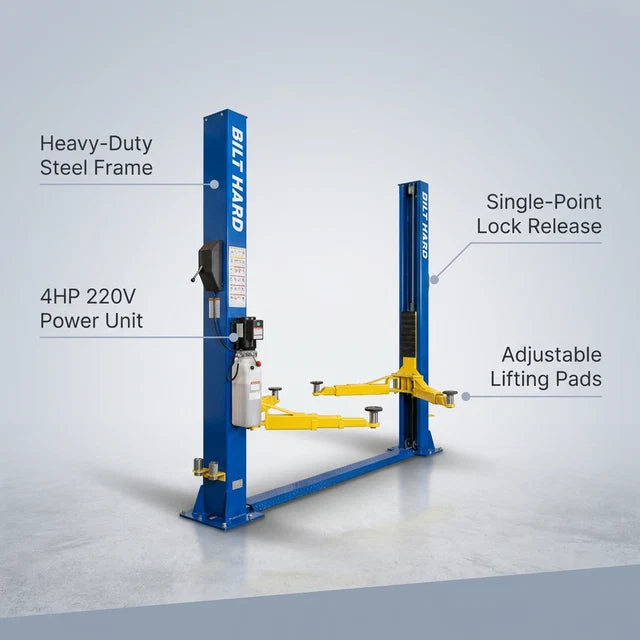

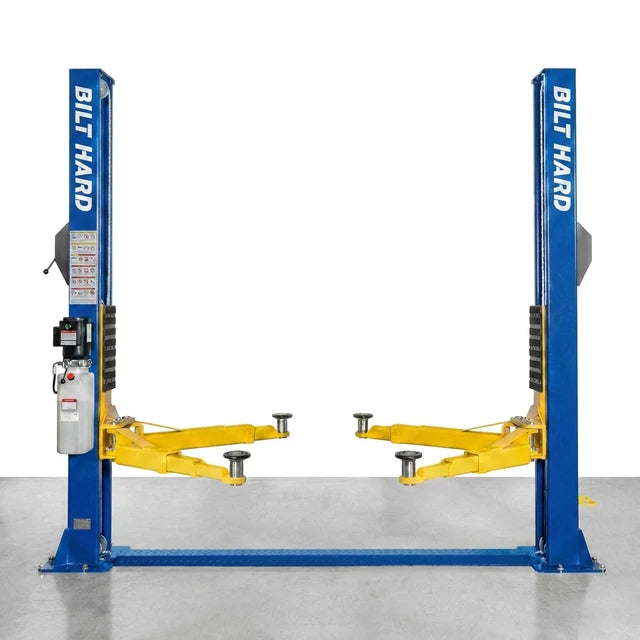

Lift vehicles for maintenance and repair with this 12,000 lb. capacity 2-post car lift. Designed for professional shops and home garages, the lift features a steel frame with reinforced columns and a hydraulic lifting system powered by a 220V, 60Hz, 4HP motor.

The lift provides an adjustable lifting height from 3.9 inches to 71.7 inches. Its two-post configuration provides access to the vehicle while raised, while a 101.3-inch drive-through clearance accommodates vehicle positioning between the columns.

A single-point safety lock release is incorporated into the lift system. The supplied installation specifications call for a concrete thickness of at least 6 inches.

Features

• 12,000 lb. lifting capacity
• Two-post vehicle lift configuration
• Steel frame with reinforced columns
• Hydraulic lifting system
• 220V / 60Hz / 4HP motor
• Single-point safety lock release
• Lifting height from 3.9 to 71.7 inches
• 101.3-inch drive-through clearance
• Designed for vehicle maintenance and repair
• Suitable for professional shops and home garages
• Listed minimum concrete thickness of 6 inches

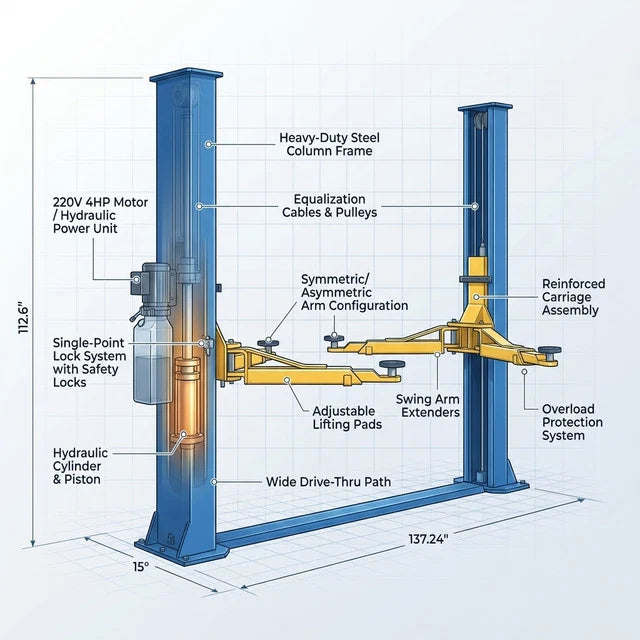

Specifications

• Product Type: 2-Post Car Lift
• Lifting Capacity: 12,000 lbs.
• Lifting Height: 3.9–71.7 in.
• Overall Height: 112.6 in.
• Overall Width: 137.24 in.
• Drive-Through Clearance: 101.3 in.
• Motor: 220V / 60Hz / 4HP
• Lifting System: Hydraulic
• Safety Lock: Single-Point
• Frame Material: Steel
• Columns: Reinforced
• Concrete Requirement: ≥ 6 in.
• Weight: 713,954 g / Approximately 1,574 lbs.
• Intended Use: Vehicle Maintenance and Repair

Assembly

Assembly and installation are required. The supplied specifications state a minimum concrete thickness requirement of 6 inches. Follow the manufacturer's installation instructions and applicable installation and safety requirements.
