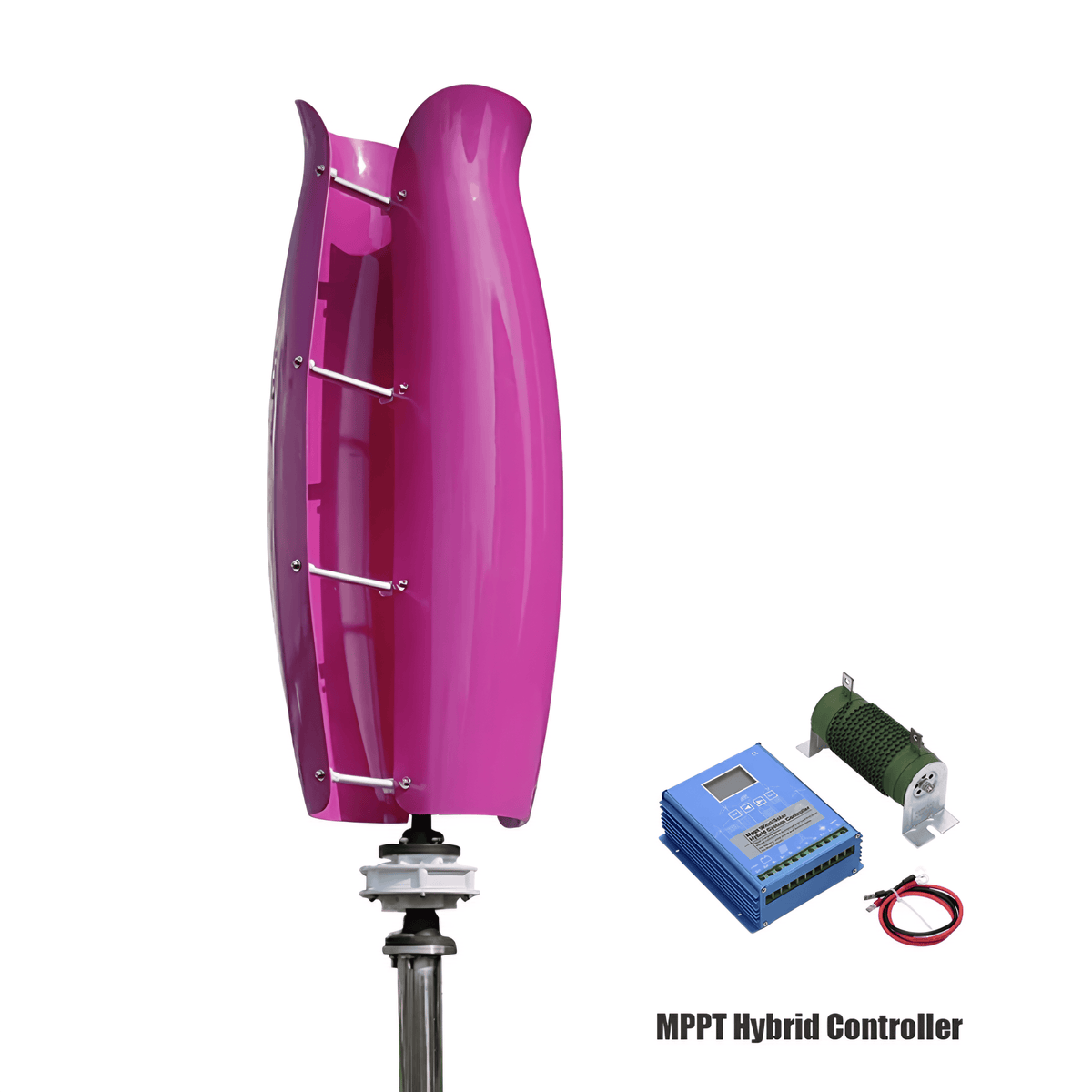

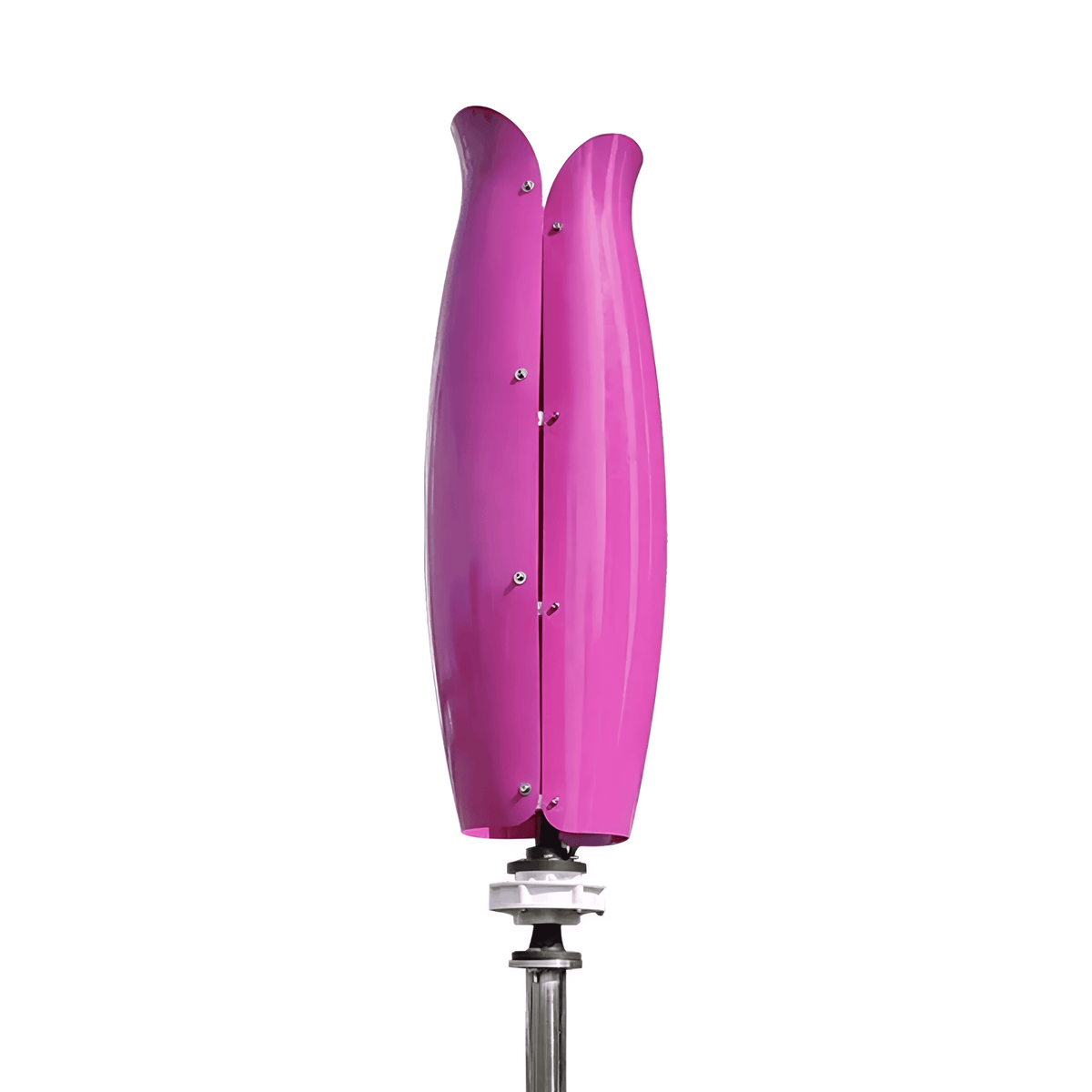

Smaraad ST-1KW 1kW Tulip Vertical Wind Turbine Generator

Smaraad ST-1KW 1kW Tulip Vertical Wind Turbine Generator

Product Description

The Smaraad ST-1KW Tulip Wind Generator is a vertical-axis wind turbine designed for residential and alternative energy applications. The turbine has a rated power output of 1kW (1.34 hp) and is available in 24V and 48V AC configurations.

The ST-1KW has a listed starting wind speed of 2 m/s, a cut-in wind speed of 4 m/s, and a rated wind speed of 13 m/s. Its vertical turbine configuration uses a 1-meter (3.28-foot) rotor diameter and blades measuring 1.7 meters in height.

The 24V and 48V options allow the turbine to be matched with compatible wind energy system components based on the selected electrical configuration.

Features

• 1kW rated wind turbine generator
• Vertical-axis tulip turbine design
• 24V and 48V AC options
• 2 m/s listed starting wind speed
• 4 m/s cut-in wind speed
• 13 m/s rated wind speed
• 1-meter rotor diameter
• 1.7-meter blade height
• Designed for residential and alternative energy applications

Specifications

• Brand: Smaraad
• Model Number: ST-1KW
• Product Type: Tulip Vertical Wind Turbine Generator
• Rated Power: 1kW / 1.34 hp
• Rated Voltage: 24V / 48V AC
• Output Voltage Options: 24V / 48V
• Starting Wind Speed: 2 m/s
• Cut-In Wind Speed: 4 m/s
• Rated Wind Speed: 13 m/s
• Rotor Diameter: 1 m / 3.28 ft
• Blade Height: 1.7 m / 5.58 ft
• Application: Residential / Alternative Wind Energy

Assembly

Installation and assembly are required. Electrical configuration and installation requirements depend on the selected 24V or 48V system and installation site.
