FX Series Vertical Wind Turbine Generator – 600W & 1000W

FX Series Vertical Wind Turbine Generator – 600W & 1000W

Product Description

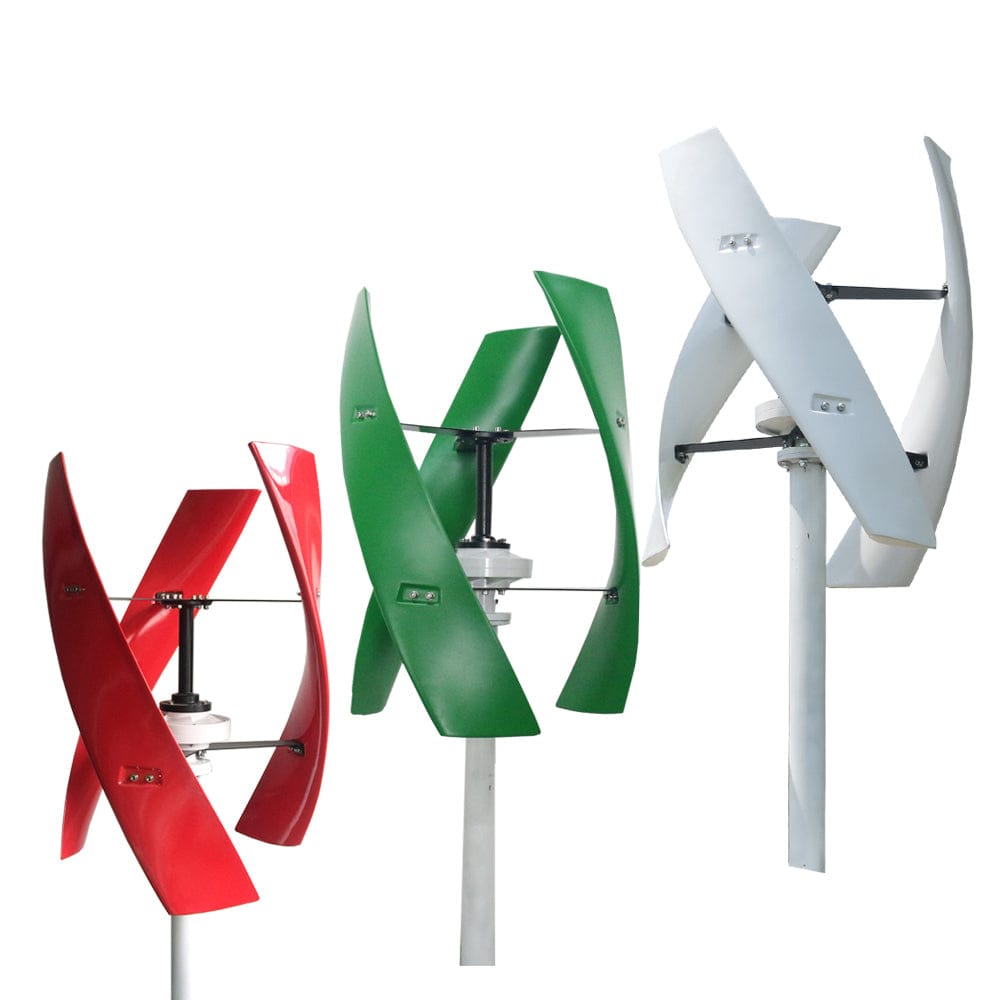

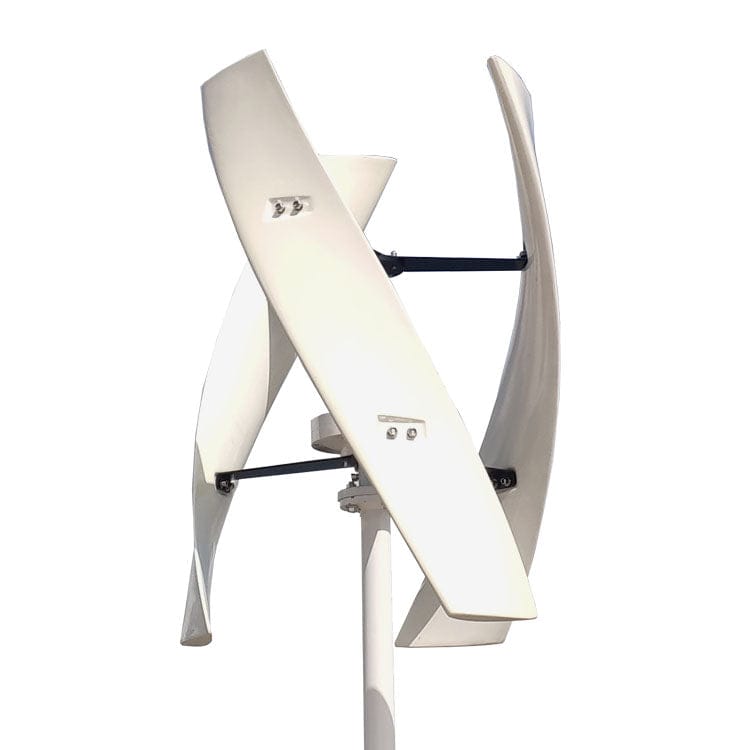

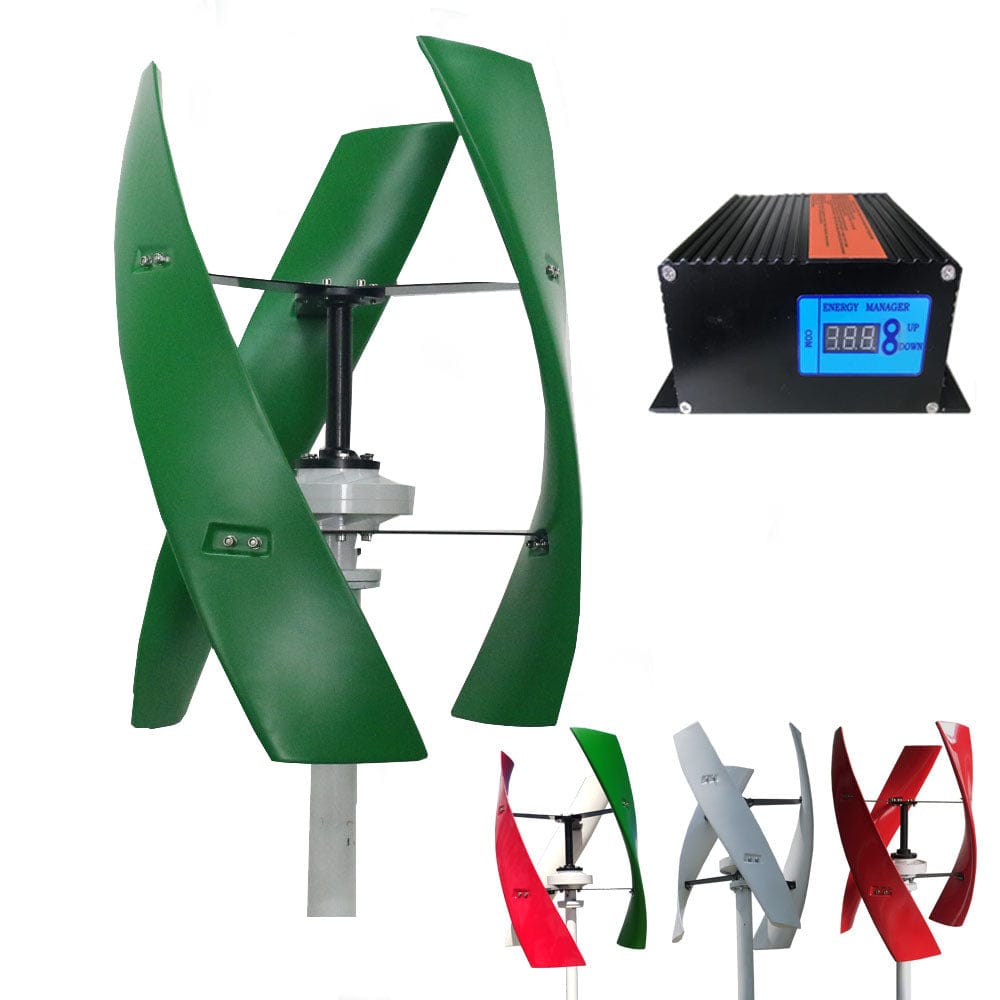

The FX Series vertical wind turbine generator is designed for alternative wind energy applications. Available models include the FX-600 with a rated output of 600W and the FX-1000 with a rated output of 1000W.

Both models have a listed starting wind speed of 1.3 m/s and a rated wind speed of 40 m/s. The FX-600 has a 2.5 m/s cut-in wind speed, while the FX-1000 has a 3 m/s cut-in wind speed.

The FX-600 is available in 12V and 24V configurations and has a maximum listed power output of 650W. The FX-1000 is available in 24V, 48V, and 96V configurations and has a maximum listed power output of 1100W.

The FX-600 specifications also list three glass/basalt blades, a three-phase permanent magnet suspension motor, IP54 generator protection, and a mounting height range of 2–12 meters.

Features

• Vertical wind turbine generator design
• FX-600 and FX-1000 model options
• Listed starting wind speed of 1.3 m/s
• Multiple voltage configurations
• Three-phase permanent magnet suspension motor listed for FX-600
• Three-blade configuration listed for FX-600
• Glass/basalt blade material listed for FX-600
• IP54 generator protection grade listed for FX-600
• Designed for alternative wind energy applications

Specifications

• Series: FX Series
• Product Type: Vertical Wind Turbine Generator

FX-600

• Rated Power: 600W
• Maximum Power: 650W
• Rated Voltage: 12V / 24V AC
• Starting Wind Speed: 1.3 m/s
• Cut-In Wind Speed: 2.5 m/s
• Rated Wind Speed: 40 m/s
• Safe Wind Speed: ≤40 m/s
• Blade Rotor Diameter: 0.6 m
• Blade Height: 1 m
• Blade Quantity: 3
• Blade Material: Glass/Basalt
• Generator: Three-Phase Permanent Magnet Suspension Motor
• Product Assembly Weight: <26 kg
• Mounting Height: 2–12 m
• Generator Protection Grade: IP54
• Operating Temperature: -25°C to +45°C

FX-1000

• Rated Power: 1000W
• Maximum Power: 1100W
• Rated Voltage: 24V / 48V / 96V AC
• Starting Wind Speed: 1.3 m/s
• Cut-In Wind Speed: 3 m/s
• Rated Wind Speed: 40 m/s
• Blade Rotor Diameter: 1.6 m
• Blade Height: 1.32 m
• Product Assembly Weight: <30 kg

Assembly

Installation and assembly are required. Mounting height, electrical configuration, and installation requirements should be selected according to the turbine model and installation site.
